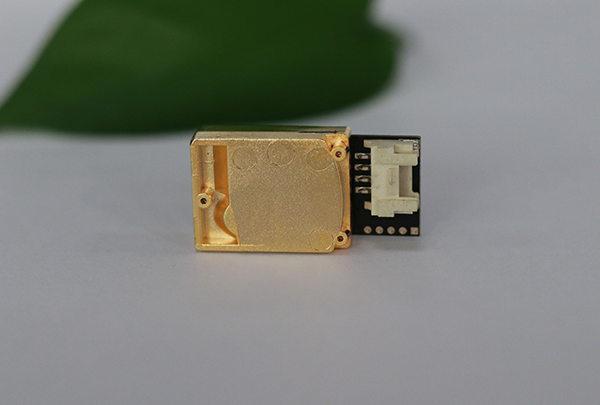

DS-CO2-30

Main characteristics
 NDIR
 Dual wavelength
 Industrial-grade Precision
 Minuscule Size

Parameter	Index	Unit
Principle	Principle of nonspectral infrared absorption
Effective Range	400~3000	ppm
Maximum Range	400~5000	ppm
Resolution	1	ppm
Maximum Consistency Error	±（50ppm+5% of Reading）
Response Time	<3 minutes for 90% step change	min
Single Update	typical	S
Warm Up Time	8s(update time)
	<25s (operational)
	<3min(90% accuracy)
	<10min (maximum accuracy)
DC Power Supply	Typ:5.0 Min:4.5 Max: 5.5	Volt(V)
Active Current	400mA peak ,40mA average	Milliampere(mA)
Interface Level	L <0.8 @3.3 H >2.7@3.3	Volt(V)
Working Temperature Range	-10~+60	℃
Working Humidity Range	0~95% non condensed
Maximum storage Temperature&Humidity	70/85	℃
Life Time	>10	Year(Y)
Physical Size	38×20×9.6	Millimeter(mm)
