PMS1003---Laser PM2.5 Sensor-Plantower Technology

Products

Laser PM2.5 Sensor

Laser PM2.5 Sensor Infrared PM2.5 Sensor HCHO Sensor CO2 Sensor Multi in one Gas Sensor Automobile Air Quality Sensor

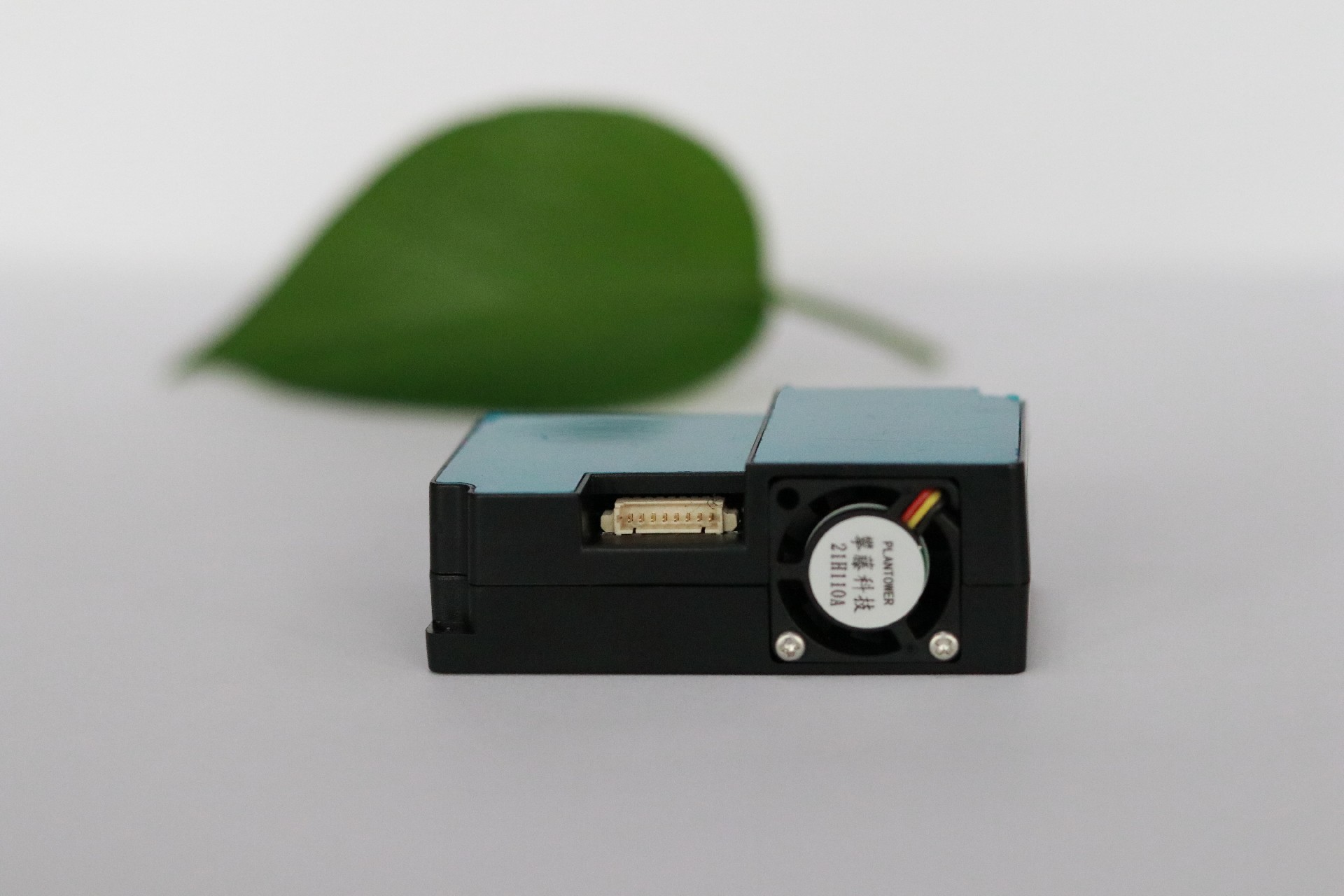

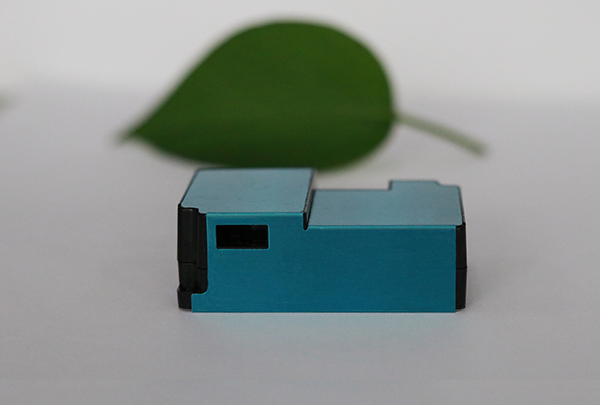

PMS1003

Main Characteristics
◆ Laser scattering principle Correct data
◆ Zero false alarm rate
◆ Real-time response
◆ Minimum distinguishable particle
diameter :0.3 micrometer
◆ High anti-interference performance because
of the structure of six sides shielding

Details

Parameter	Index	Unit
Particle Range of measurement	0.3~1.0; 1.0~2.5; 2.5~10	Micrometer（μm）
Particle Counting Efficiency	50%@0.3µm 98%@≥0.5µm
Particle Effective Range （PM2.5 standard）	0~500	μg/m³
Particle Maximum Range （PM2.5 standard）*	≥1000	μg/m³
Particle Resolution	1	μg/m³
Particle Maximum Consistency Error (PM2.5 standard data)*	±10%@100～500µg/m3 ±10µg/m3@0～100µg/m3
Particle Standard Volume	0.1	Litre（L）
Single Response Time	<1	Second（s）
Total Response Time	<10	Second（s）
DC Power Supply	Typ：5.0 Min:4.5 Max:5.5	Volt（V）
Active Current	≤100	Milliampere（mA）
Standby Current	≤200	Milliampere（mA）
Interface Level	L<0.8 @3.3 H>2.7@3.3	Volt（V）
Working Temperature Range	-10~+60	℃
Working Humidity Range	0~95%（No condensation）
Storage Temperature Range	-40~+80	℃
MTTF	≥3	Year
Physical Size	65mm×42mm×23mm	mm
